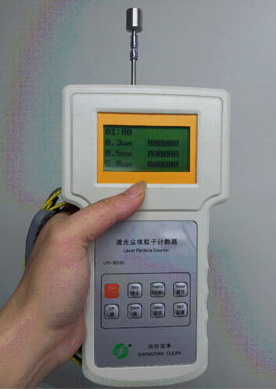

LPC-301H3 Handheld laser particle counter is used to measure the size and quantity of particles within air of unit
volume in clean environment; it can directly measure clean environments from clean class 10 to 1000,000. This counter has used semiconductor laser power and big liquid crystal screen, so it is small, light, highly accurate, easing-operating and microprocessor-controlled. It may store and print the measure results, the printed result will show the clean class of that point and the measure of the clean environment is convenient.
The product is widely used in electronics, optics, chemistry, food, cosmetic, medical science, biological products, aviation, and so on.
Characteristics:
* high resolution LCD display, 3 size shows at the same time
* large capacity lithium ion battery, use longer
* import sampling pump, reliable performance, flow stability
* laser sensor of high accuracy
* can store up to 1000 groups of testing data
* optional bluetooth thermal printer, convenient data records in a timely manner
Main Technical Parameter:
|
Dimensions |
134.5×270×51mm3 (W× D ×H) |
|
Weight |
0.95kg |
|
Maximum Power |
6W |
|
Power supply |
AC(100-240V 50/60Hz)and |
|
Particle Size |
0.3、0.5、5.0（μm），show 3 bunches of particles at the same time and directly show particle concentration（unit：grain/m3） |
|
Sampling Flow Rate |
0.1CFM(2.83L/min) |
|
Measure Period |
1-60min |
|
Self-Purifying Time |
≤10min |
|
Print |
optional bluetooth thermal printer |
|
Usable Environmental Condition |
Temperature：10℃～30℃ |
|
Humidity 20%～75% |
|
|
Atmospheric pressure：86Pa-106kPa |
|
|
Maximum Sampling Concentration Permitted |
35000 grain/L（the particle size of a particle shall not be over 0.5μm）acid ,alkali and such corrosive gas are not permitted in the sampling air. |
|
Continuous Work Time |
≈4 hours |
|
Light Source and Life |
Semiconductor laser，life is over 30,000 hours |
|
Packing of Data |
256 groups |
